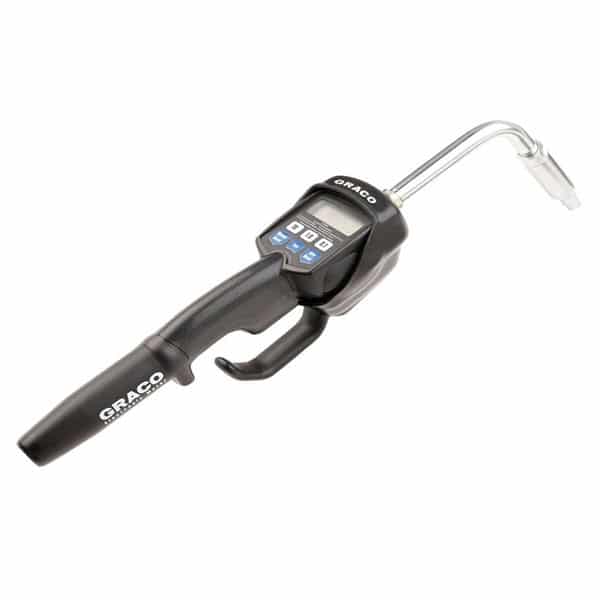

256216 – Graco Preset Metered Dispense Valve

Features

• Designed for indoor use, with standard flow rates of 5 GPM (18.9 LPM)
• Manual and preset meters with a number of optional accessories to choose from
• Easy to read LCD display with durable switches for long life
• Two-finger trigger; LDP5 models feature a latching trigger to reduce operator fatigue
• Rugged meter body for superior impact resistance and long life
• Ergonomically-designed handle for operator comfort

Specs

• Flow Range: 0.1 – 5 GPM (0.4 – 19 LPM)
• Maximum Working Pressure: 1000 PSI (69 BAR)
• Units of measure: Quarts, pints, gallons, liters (factory set to quarts)
• Inlet: 1/2″” NPT
• Outlet: 1/2″” NPT
• Operating Temperature Range: 32 – 120º F (0 – 48.8º C)
• Battery: 9 volt alkaline
• Battery Life: one year
• Wetted Parts: sst, nitrile rubber, zinc, cs, lcp
• Meter Pressure Loss: 90 PSI (6.2 BAR) @ 5 GPM (19 LPM)
• Accuracy: ±0.5%
• Maximum Totalizer: 999,999 gallons or liters
• Maximum Recorded Dispense: 999.9 Units (LDP5 only)
